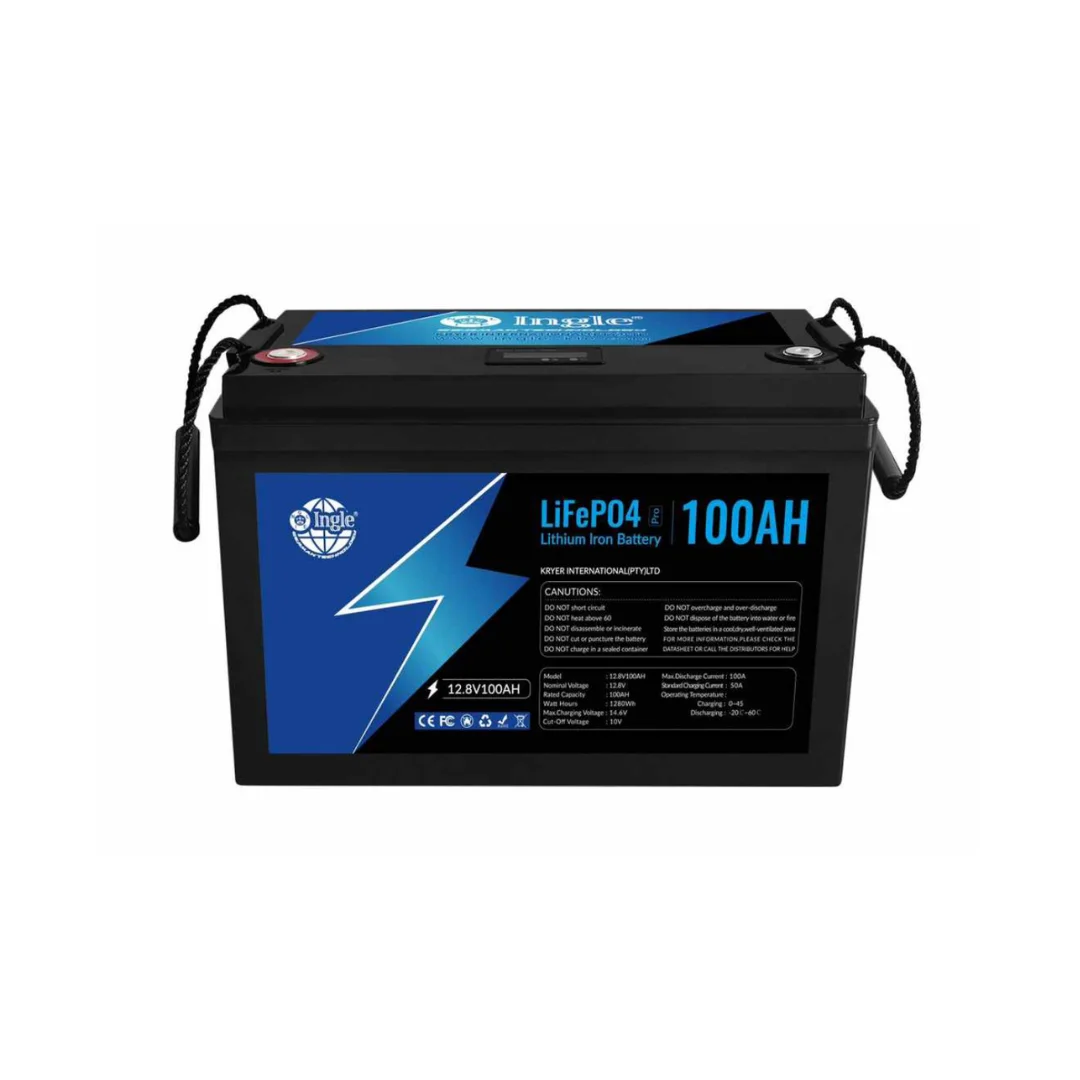

Ingle 12.8V 100AH 1.28kWh Lithium Battery

12V 100Ah LiFePO4 Battery – 1.28KWh, Deep Cycle, 3000 Cycles, 12-Month Warranty

Description:

The 12V 100Ah LiFePO4 Battery is a high-performance lithium iron phosphate (LiFePO4) battery, designed as a reliable replacement for lead-acid, AGM, and gel batteries. With a 1.28KWh energy capacity, this deep-cycle battery is perfect for solar power storage, RVs, marine applications, and backup power systems.

Built for long-lasting performance, it offers up to 3000 cycles at 80% Depth of Discharge (DOD), ensuring a lifespan of 3-5 years. This battery can be connected in series (4S) or parallel (4P) to increase system capacity.

Key Features:

• 12.8V 100Ah LiFePO4 Battery Module – Efficient energy storage for various applications.
• 1.28KWh Rated Capacity – Provides reliable power for off-grid and backup solutions.
• Long Cycle Life (3000+ Cycles @ 80% DOD) – Outlasts traditional lead-acid batteries.
• Deep Cycle Design – Supports frequent charging and discharging.
• Series & Parallel Expandability – Connect up to 4 batteries in series or 4 in parallel.
• High Discharge Capability – Maximum discharge current: 150A.
• Wide Voltage Range – Charge cut-off: 14.6V | Discharge cut-off: 10V.
• Compact & Lightweight – Dimensions: 329mm x 173mm x 216mm | Weight: 10.5kg.
• Reliable Temperature Performance – Operating temperature: 0°C to 45°C (charging).
• 12-Month Manufacturer Warranty – Ensures long-term reliability.

Technical Specifications:

• Nominal Voltage: 12.8V
• Rated Capacity: 100Ah (1.28KWh)
• Charge Cut-Off Voltage: 14.6V
• Discharge Cut-Off Voltage: 10V
• Maximum Discharge Current: 150A
• Cycle Life: 3000 cycles @ 80% Depth of Discharge (DOD)
• Design Life: 3-5 Years
• Expandable Configuration: Up to 4 Series (4S) / 4 Parallel (4P)
• Dimensions (L x W x H): 329mm x 173mm x 216mm
• Weight: 10.5kg

What’s in the Box:

• 1 x 12V 100Ah LiFePO4 Battery
• 1 x User Manual

Installation & Warranty:

• 12-Month Manufacturer Warranty
• Professional Installation Required – Must be installed by a qualified electrical wireman or master electrician.
• Valid Certificate of Compliance (COC) Required – Installation must comply with SANS 10142 standards.
• Warranty Claims – Must include installation photos, a valid COC, and proof of a qualified installer.
