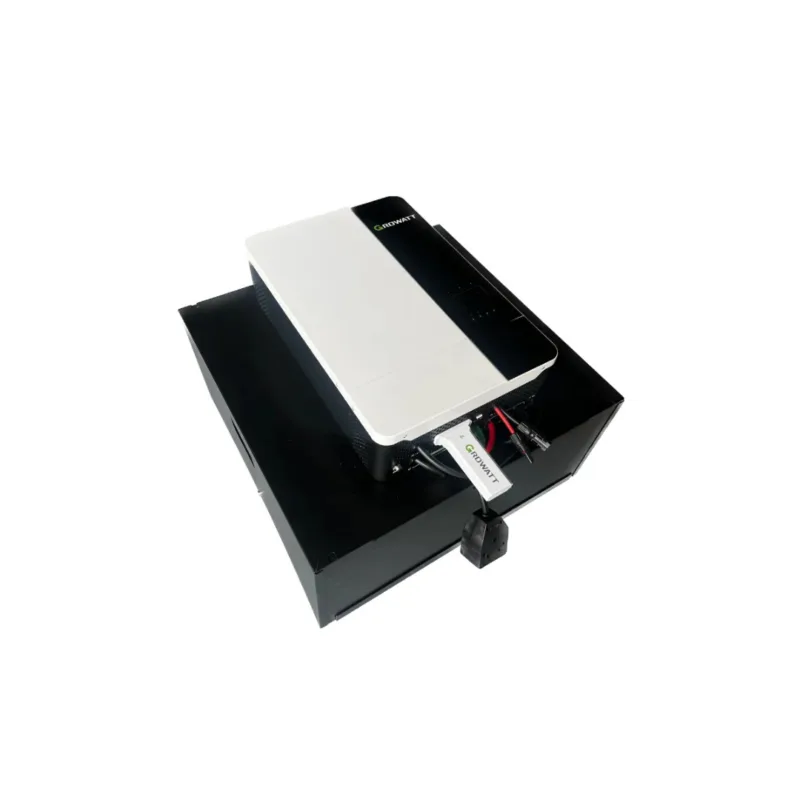

5KVA / 5000W Growatt Portable Plug And Play Power System+ 5.43kWh SVOLT Lithium Battery / +WIFI / MPPT
Description:
Reliable Backup Power Solution – Load Shedding & Off-Grid Ready
This plug-and-play hybrid inverter system offers a comprehensive backup power solution for homes and businesses. It features a 5KVA (5000W) Growatt hybrid inverter paired with a 5.43kWh SVOLT lithium battery, ensuring continuous power for essential appliances. Designed to be solar-ready, it allows for seamless integration with solar panels, providing a sustainable and energy-efficient solution.
Assembly Notice: Trolley assembly requires 2-3 hours before in store collection .
Key Features & Benefits:
Automatic Power Transfer – Instantly switches to battery power during outages.
Pure Sine Wave Output (Power Factor 1.0) – Ensures safe operation of sensitive electronics.
MPPT Solar Charge Controller (Built-in) – Optimized solar charging for maximum efficiency.
High PV Input Voltage (Up to 450V DC) – Compatible with a wide range of solar panels.
WiFi & GPRS Remote Monitoring – Allows real-time performance tracking.
Battery Equalization Function – Enhances battery longevity and efficiency.
Flexible Power Configuration – Works with or without batteries.
Parallel Expansion – Supports up to 6 inverters for increased capacity.
Compact, Portable Design – Equipped with lockable wheels for easy mobility.
Battery Backup Performance:
- Powers a 150W load (TV, WiFi, lights, etc.) for up to 45-50 hours on a full charge (100% Depth of Discharge).
- Extended Cycle Life – Up to 6000+ cycles, lasting much longer than traditional lead-acid batteries.
- Efficient Charging & Discharging – Maintains a 99.5% round-trip efficiency, reducing power loss.
- Safe & Reliable – Lithium Iron Phosphate (LiFePO4) chemistry eliminates risks of overheating, overcharging, or short circuits.
System Specifications:
Inverter Specifications (Growatt SPF 5000 ES):
- Rated Power: 5000W
- AC Output Voltage: 230V AC ± 5%
- Surge Power: 10,000VA (5 seconds)
- Efficiency (Peak): 93%
- Waveform: Pure sine wave
- Transfer Time: 10ms – 20ms
Solar Charger Specifications:
- Maximum PV Array Power: 6000W
- MPPT Operating Voltage Range: 120V – 430V DC
- Maximum PV Array Open Circuit Voltage: 450V DC
- Maximum Solar Charge Current: 100A
Battery Charger Specifications:
- Battery Voltage: 48V DC
- Battery Type: Lithium / Lead-Acid / Gel
- Maximum Charge Current (AC): 80A
- AC Input Voltage: 230V AC
- Frequency Range: 50Hz / 60Hz (Auto Sensing)
Battery Specifications (SVOLT 51.2V 106Ah Lithium Battery):
- Battery Type: LiFePO4 (Lithium Iron Phosphate)
- Nominal Voltage: 51.2V
- Nominal Capacity: 106Ah
- Energy Storage Capacity: 5.43kWh
- Cycle Life: >4000 Cycles (80% DOD)
- Charge Temperature Range: 0°C – 45°C
- Discharge Temperature Range: -20°C – 65°C
- Built-in Battery Management System (BMS): Yes
- Max Continuous Discharge Current: 100A
- Communication Protocols: RS485, CAN
Physical Specifications:
- Inverter Dimensions: 330mm x 485mm x 135mm
- Inverter Weight: 12kg
- Trolley Size: 60cm x 60cm x 45cm
- System Weight: Approx. 60kg
- Protection Degree: IP20 (Indoor Use)
What’s Included in the System?
1x 5KVA Growatt Hybrid Inverter + Wifi
1x SVOLT 5.43kWh Lithium-Ion Battery (51.2V, 106Ah)
1x Heavy-Duty Portable Steel Box with Lockable Wheels
1x Surge Plug (1m Power Cable, 2.5mm Cabtyre)
1x Double-Sided Female Plug Socket
1x Fuse & Disconnector (Battery to Inverter)
1x Coms Cable for Battery Communication
1x User Manual
Installation & Warranty:
- Installation Requirement: Must be installed by a certified electrical wireman or master electrician with a valid Department of Labour registration.
- Certificate of Compliance (COC): A COC is required post-installation to ensure compliance with SANS 10142 safety standards.
- Warranty Coverage:
- 5-Year Warranty on the battery.
- 2-Year Warranty on the Inverter.
- Warranty claims require installation photos, a valid COC, and proof of installation by a certified professional.
Be Prepared for Load Shedding – Get Reliable Backup Power Today!
This high-performance, solar-ready backup system ensures your home or business stays powered during outages. Whether for residential, commercial, or industrial use, it provides long-lasting energy storage, efficient solar integration, and remote monitoring capabilities.
Order yours today and stay powered no matter what!
