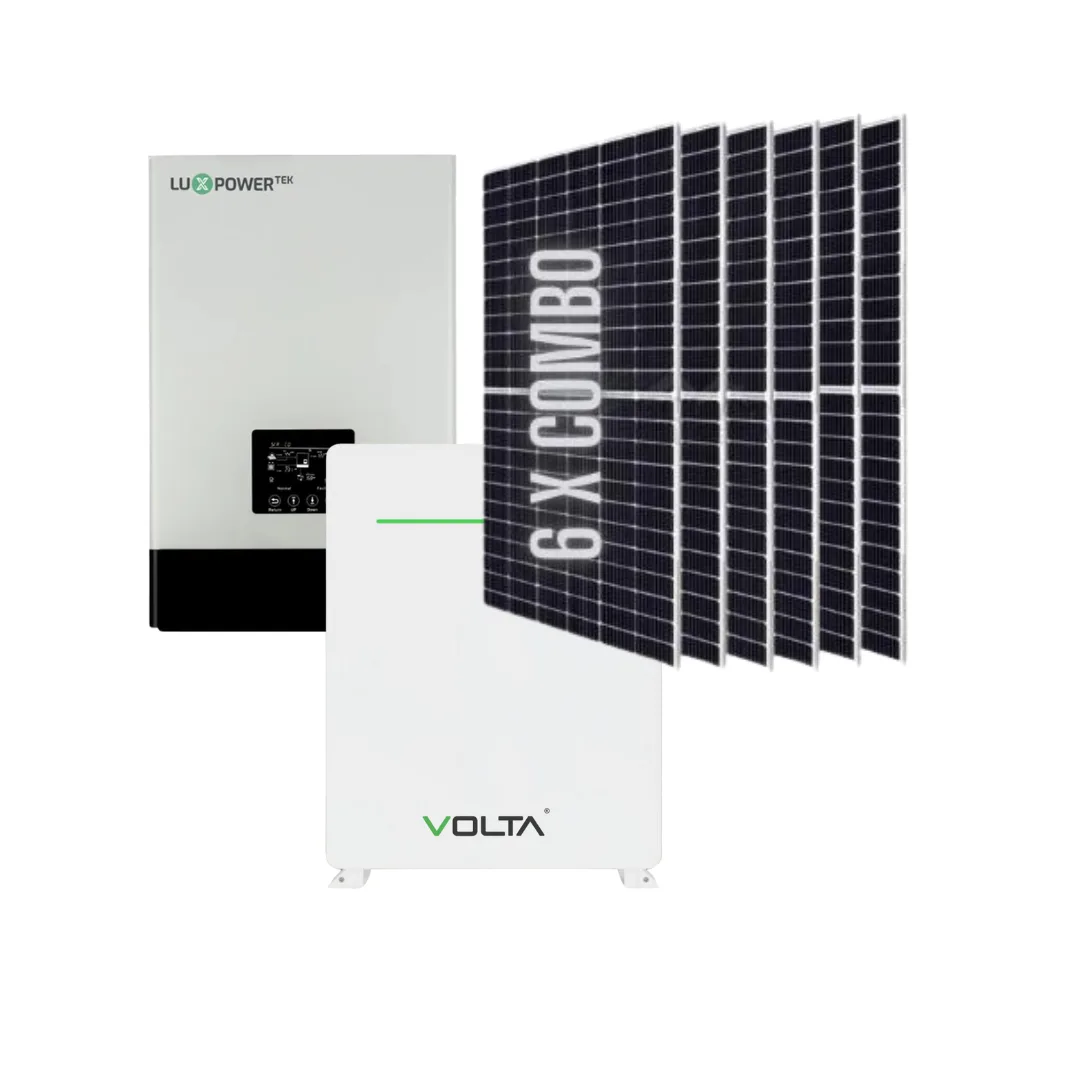

5KVA LuxPower Hybrid Inverter MPPT + Volta 5.12kWh (STAGE 1 / NEW GEN) Lithium Battery + 6 x 560W Mono Crystal Solar Panels Combo Kit

5KVA LuxPower Hybrid Inverter MPPT + Volta 5.12kWh (STAGE 1 / NEW GEN) Lithium Battery + 6 x 560W Mono Crystal Solar Panels Combo Kit

Complete Backup Power & Solar Energy Solution

This 5KVA LuxPower Hybrid Inverter & Volta PRO Lithium Battery Combo, paired with six 560W monocrystalline solar panels, offers a reliable and efficient energy backup solution for residential and commercial applications. Whether for load shedding, off-grid living, or hybrid solar power generation, this system provides intelligent power management, high-efficiency energy storage, and seamless solar integration.

Combo Includes:

1x LuxPower 5KVA / 5000W Hybrid Inverter (WiFi Dongle Included)
1x Volta STAGE 1 NEW GEN 5.12kWh Lithium Battery (LiFePO4, 51.2V 104Ah)
6x 560W Monocrystalline Solar Panels
Battery Cables & Brackets Included

PLEASE NOTE THAT SOLAR PANELS ARE COURIERED AT OWN RISK

Key Features

LuxPower 5KVA Hybrid Inverter

Smart Hybrid & Off-Grid Operation – Switches seamlessly between solar, battery, and grid power for an uninterrupted power supply.
Dual MPPT Solar Charge Controller – Max 120A charge current, optimizing solar energy conversion.
Scalable Power Solution – Parallel up to 10 inverters for increased capacity.
Remote Monitoring & Control – WiFi-enabled with mobile app monitoring for real-time tracking and performance optimization.
Broad Battery Compatibility – Works with Volta, Deye, Growatt, Sunsynk, Victron, PylonTech, and more.
Advanced Safety Features – Overload, short circuit, surge, and temperature protection for enhanced system reliability.

Technical Specifications

LuxPower 5KVA Hybrid Inverter

• Inverter Type: Hybrid (Grid-Tied & Off-Grid)
• Rated Power: 5,000W / 5KVA
• Surge Power: 7,200VA
• Waveform: Pure Sine Wave
• MPPT Solar Charge Controller:
  • Max PV Input Power: 6,200W
  • MPPT Voltage Range: 90V – 500V DC
  • Max Solar Charge Current: 120A
• AC Charging Capacity:
  • Charge Current: 100A
  • Input Voltage: 230V AC
  • Selectable Voltage Range: 195V – 253V AC
• Battery Compatibility:
  • Voltage Range: 20V – 33V DC
  • Max Charge/Discharge Current: 150A
• Connectivity & Monitoring:
  • WiFi Remote Monitoring
  • RS485 & CAN Communication for BMS Integration
• Installation & Dimensions:
  • Wall-Mounted (IP20 Rated – Indoor Use Only)
  • Size: 440 x 620 x 150 mm
  • Weight: 46 kg
• Warranty: 2 Years

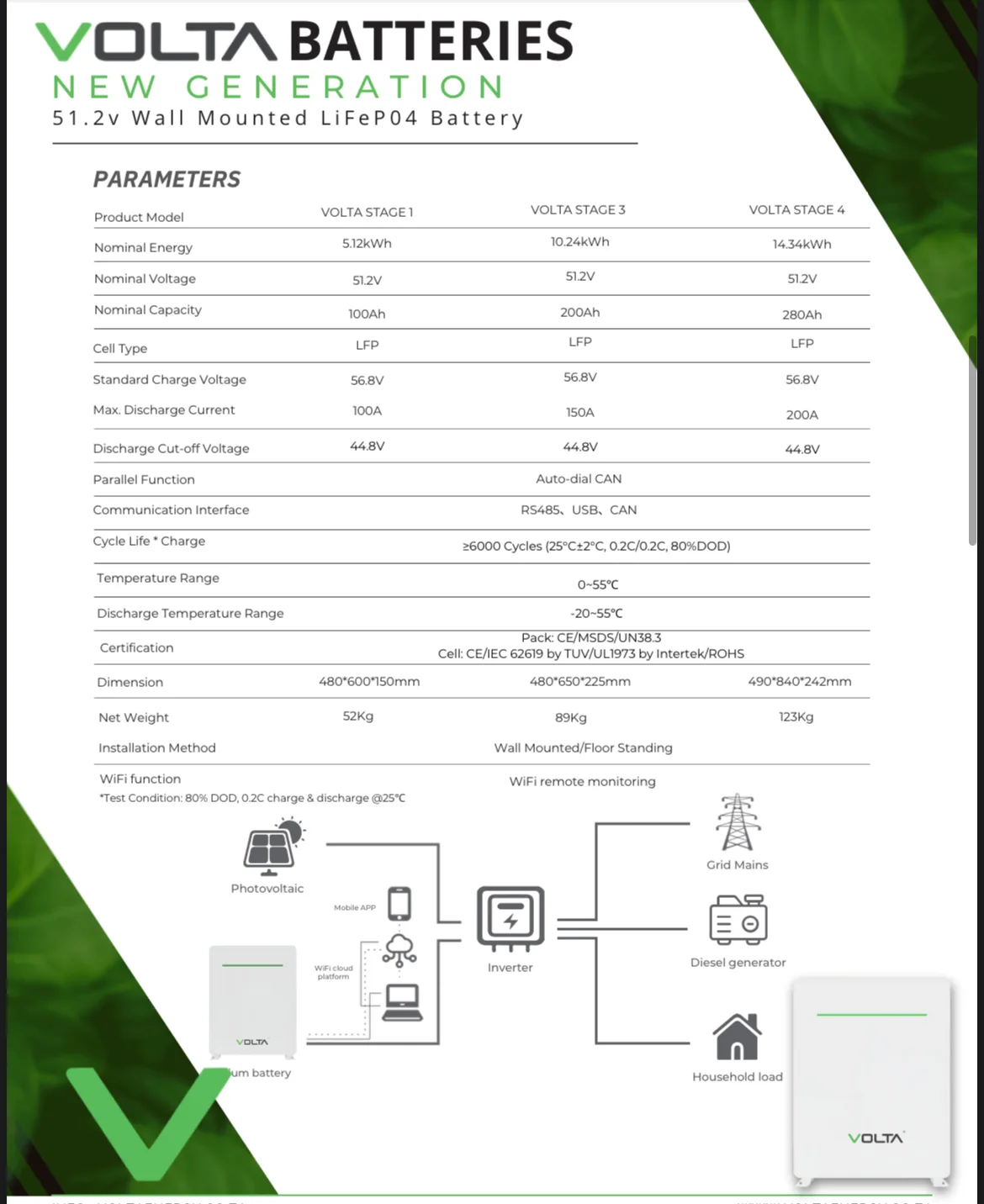

Volta STAGE 1 NEW GEN 5.12kWh Lithium Battery

High-Performance LiFePO4 Battery – Long-lasting and efficient energy storage with a 10-year warranty.
Scalable & Expandable – Connect up to 32 battery units for a total storage capacity of 170kWh.
Advanced Battery Management System (BMS) – Protects against overcharging, over-discharging, and short circuits.
Wall-Mounted & Floor-Standing Installation – Flexible placement options to suit your space requirements.
Wide Inverter Compatibility – Compatible with Deye, Sunsynk, Growatt, SMA, LuxPower, Victron, and more.

Technical Specifications

Volta PRO 5.12kWh Lithium Battery

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51.2V
• Total Energy Capacity: 5.32kWh
• Usable Capacity: 4.79kWh
• Depth of Discharge (DOD): 90%
• Cycle Life: 6,000+ Cycles at 25°C (0.5C/1C Charge & Discharge Rate)
• Charge & Discharge Capacity:
  • Recommended: 50A
  • Maximum: 100A
  • Peak Discharge: 150A (2 minutes @ 25°C)
• Operating Temperature Range:
  • Charge: 0°C to 55°C
  • Discharge: -20°C to 60°C
  • Storage: 0°C to 35°C
• Communication Ports: CAN 2.0, RS485
• Installation: Wall-Mounted or Floor-Standing
• Dimensions & Weight:
  • Size: 440 x 620 x 150 mm
  • Weight: 46 kg
• Battery Warranty: 10 Years

Solar Panels (6 x 560W Monocrystalline)

High-Efficiency Solar Power – Delivers maximum energy conversion with mono-crystalline technology.
Durable & Weather-Resistant – Designed for harsh environments and extreme temperatures.
Optimized for LuxPower Inverters – Ensures seamless solar energy integration for enhanced backup power performance.

Package Contents

1x LuxPower 5KVA Hybrid Inverter (WiFi Dongle Included)
1x Volta PRO 5.12kWh Lithium Battery (LiFePO4, 51.2V 100Ah)
6x 560W Monocrystalline Solar Panels
Battery Cables & Mounting Brackets
1x Ethernet Communication Cable
1x User Manual

Installation & Warranty Guidelines

• Installation Requirement: Must be installed by a qualified electrician or wireman.
• Certificate of Compliance (COC): Required for warranty validation.
• Warranty Coverage:
  • Inverter Warranty: 2 Years
  • Battery Warranty: 10 Years
  • Solar Panel Warranty: 10-Year Workmanship & 25-Year Performance Warranty
• Warranty Claims:
  • Must include installation photos, valid COC, and proof of installation by a certified professional.
  • Improper installation, electrical surge damage, or non-compliance with standards will void the warranty.

Ideal Applications

Load Shedding & Backup Power Solutions
Residential & Commercial Solar Systems
Hybrid & Off-Grid Energy Storage
Peak Demand Energy Management
Expandable for Larger Energy Needs

Why Choose This Solar Power System?

Complete Hybrid Power Solution – Inverter, battery, and solar panels in one reliable package.
High-Capacity Lithium Storage – Long-lasting LiFePO4 battery with fast charging & deep discharge support.
Smart Energy Management – MPPT solar charging, real-time monitoring, and intelligent load balancing.
Scalable & Future-Ready – Expandable system with parallel inverter & battery support.
WiFi Remote Monitoring – Track system performance & optimize energy usage from anywhere.
Trusted Brands – LuxPower, Volta, and Monocrystalline panels for premium solar performance.

Need Assistance?

For installation support, product manuals, and setup guides, visit:
📌 LuxPower Hybrid Inverter Setup Guide
📌 Battery Management & Parallel Connection Training
📌 MPPT Solar Charge Controller Overview
