Product Title:

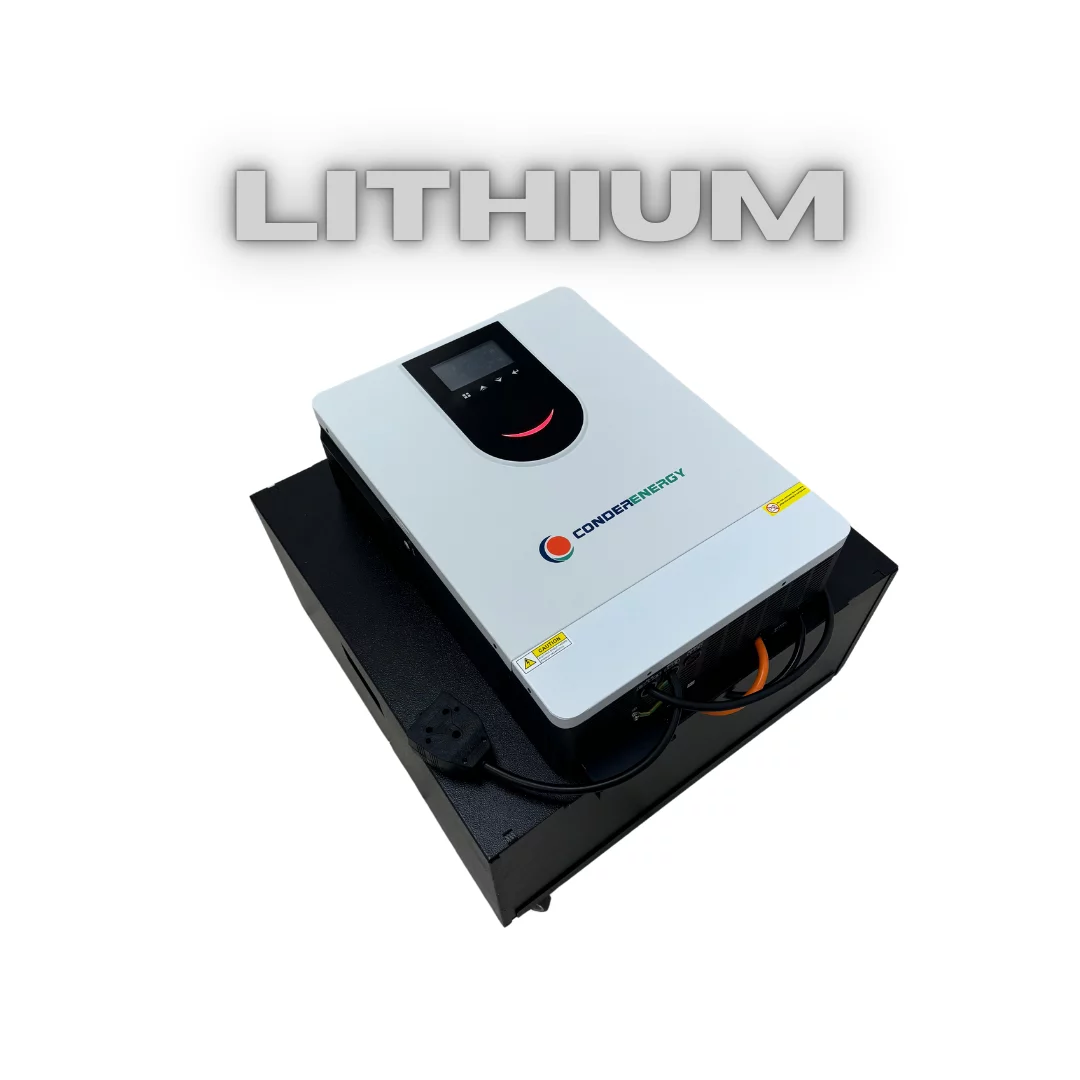

Conderenergy 10.2kVA / 10200W Hybrid Inverter MPPT + 5.12kWh Lithium Battery / Portable Plug & Play Solar-Ready System
Product Description:
The Conderenergy 10.2kVA Hybrid Inverter with 5.12kWh Lithium Battery is an all-in-one portable plug & play solution designed for load shedding and backup power. This system features a heavy-duty inverter trolley, making it compact, portable, and easy to move with lockable wheels and handles.
What is an all-in-one portable plug & play Solar Ready inverter system and what does it do?
It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers, chargers, and wifi running during load shedding. Solar ready : Add a solar panel and charge your batteries when there is no power.
Key Features:
- 10.2kVA Hybrid Inverter – Provides 10200W total output.
- Plug & Play System – Ready to use with minimal installation.
- Solar-Ready – Add solar panels for an off-grid solution.
- Portable Heavy-Duty Trolley – Includes lockable wheels and a sturdy frame.
- Pure Sine Wave Output – Ensures stable power for sensitive electronics.
- Automatic UPS Mode – Instant switchover to battery power during outages.
- Smart Battery Charging – Optimized for battery longevity.
- LCD Display – Configurable settings for voltage, charging priorities, and more.
- Overload, Short Circuit & Overheat Protection – Built-in safety features.
Battery Backup Performance:
- 100W Load (TV, WiFi, Lights, etc.) – Lasts 45-50 hours at 100% Depth of Discharge (DOD).
- Solar Ready – Add solar panels to charge batteries during power cuts.
Technical Specifications:
RGB Light
Battery Mode: Red Light
Utility Mode: Blue Light
PV Mode: Purple Light
Inverter Specifications:
- Model: Conderenergy 10.2kVA Hybrid Inverter
- MPPT Rating: 100A
- PV Input Voltage Range: 90V – 450V DC
- Max PV Array Open Circuit Voltage: 500V DC
- Nominal AC Output Voltage: 220/230/240V
- Grid Voltage Range: 195-253V
- Grid Frequency Range: 49-51Hz ±1Hz
- Nominal Output Current: 15.7A
- Power Factor Range: >0.99
- Max Conversion Efficiency (DC/AC): 97%
- Operating Frequency: 50/60Hz
- Load Output Power:
- Main Load: 10200W
- Secondary Load: 3400W
Battery Specifications:
- Battery Model: 51.2V 106Ah Lithium Battery
- Battery Type: LiFePO4 (Lithium Iron Phosphate)
- Nominal Energy: 5.12kWh
- Nominal Voltage: 51.2V
- Nominal Capacity: 106Ah
- Installation Type: Wall Mounted
- Efficiency (Round Trip): >97%
- Self Discharge Per Month: <3%
- Cycle Life (@90% DOD): >6000 Cycles
- Max Parallel Units: 16
- Charge Temperature Range: -5°C to 65°C
- Discharge Temperature Range: -20°C to 70°C
- Storage Temperature: 0°C to 30°C
- Max Continuous Charge Current: 100A
- Max Continuous Discharge Current: 100A
- Peak Discharge Current: 150A (100ms)
- Communication: CAN/RS485
- Optional: Bluetooth App & LCD Display
- BMS Built-in: Yes
System Inclusions:
- 1x Portable Steel Box with 2 Lockable Wheels
- 1x Surge Plug with 1m Power Cable (2.5mm Cabtyre)
- 1x Double-Sided Female Plug Socket
- 1x Fuse + Disconnector (Battery to Inverter)
- 1x 10.2kVA Hybrid Inverter
- 1x 5.12kWh Lithium Battery
- Upgradable System – Space for an additional battery
Dimensions & Weight:
- System Size: 60cm x 60cm x 45cm
- Battery Weight: 45.6kg
- Total System Weight: Approx. 60kg
Warranty & Certifications:
- Warranty:
- Inverter: 5 Years
- Battery: 5 Years
- Certifications: UN38.3, CE-EMC, IEC62619, CEI-021
Why Choose the Conderenergy 10.2kVA Hybrid Inverter System?
This versatile power backup solution is perfect for load shedding, renewable energy storage, and off-grid power applications. With plug & play usability, expandability, and solar readiness, this system ensures continuous and reliable energy supply.
Order today and take control of your power supply!
